In industries like aggregate processing, construction material recycling, soil remediation, and mining, efficiently separating mixed materials by size is critical. Whether screening rugged stones, fine sand, or complex soil mixtures, fixed trommel screens deliver unmatched reliability and precision.
Why Choose Fixed Trommel Screens for Screening?

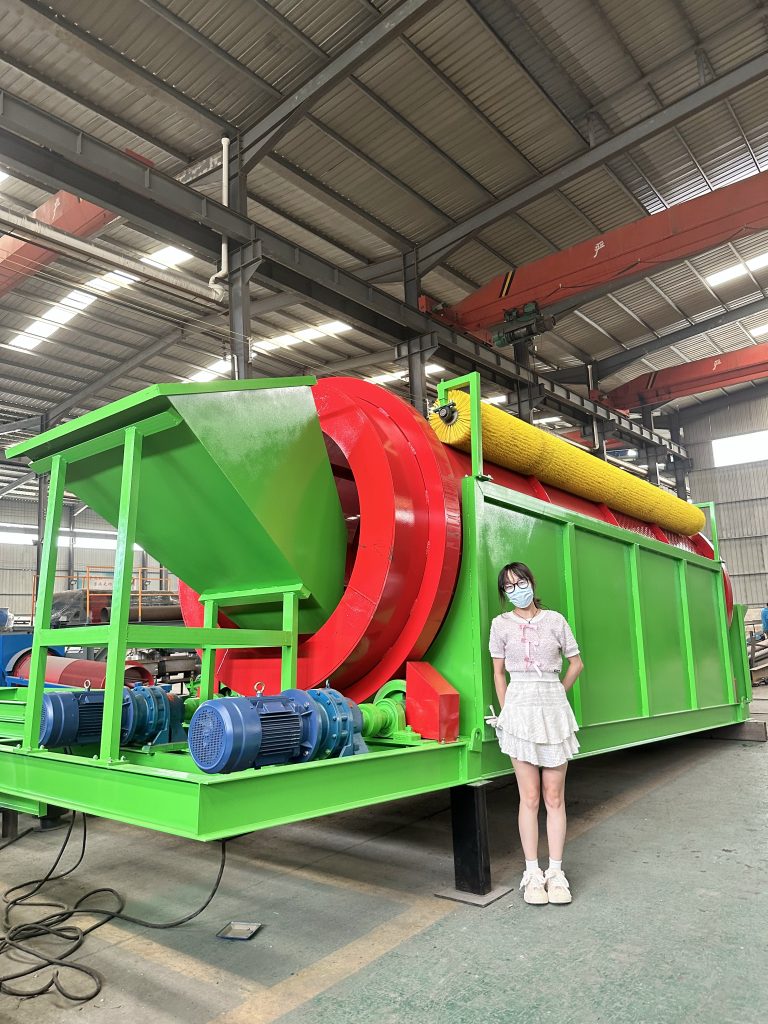

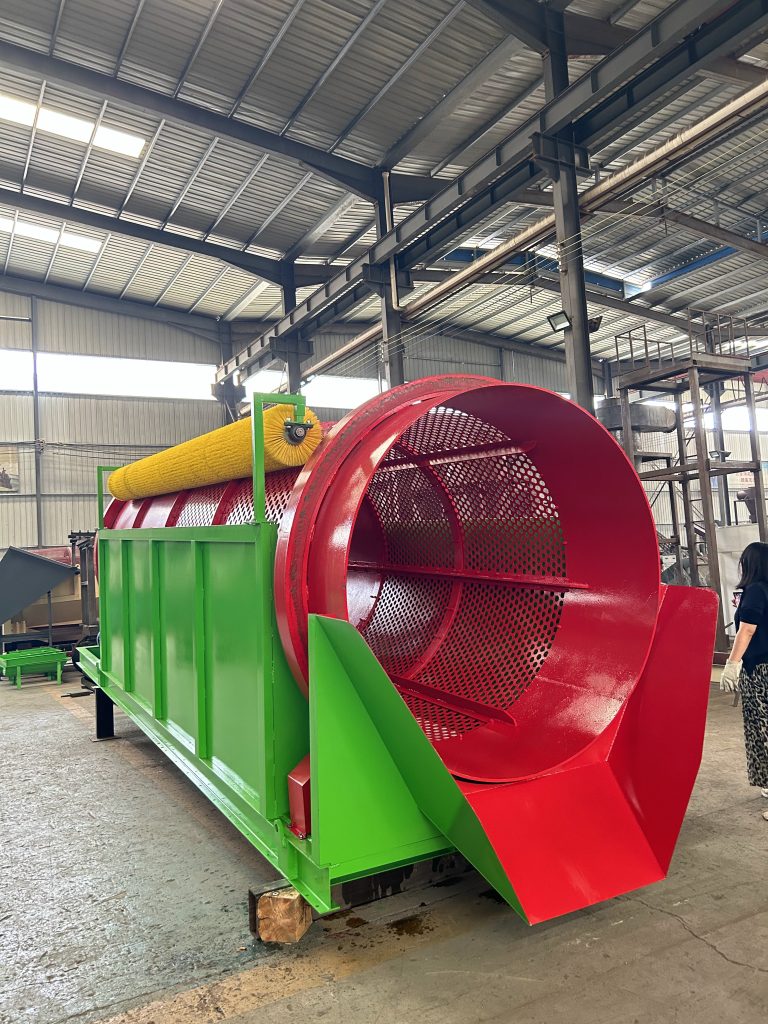

Sinolion fixed trommel screens (or rotary drum screens) use a rotating, slightly inclined cylinder with layered mesh panels. Materials enter the drum, where smaller particles (sand/soil fines) fall through the screens, while larger debris (stones/gravel) exit the end. Perfect for:
- Stone Screening:
- Separate crushed rock into sizes (0-5mm, 5-20mm, 20-40mm).
- Remove oversize rocks from aggregate.
- Grade stones for concrete or road base.
- Sand Screening:
- Classify natural or manufactured sand (coarse/medium/fine).
- Remove pebbles, shells, or debris.
- Ensure compliance with construction sand standards.
- Soil Screening:
- Decontaminate soil by removing stones/bricks.
- Prepare uniform topsoil for agriculture/landscaping.
- Screen archaeological digs or compost.
Sinolion Fixed Trommel Screens: Engineered for Excellence
Key Advantages:
✅ Heavy-Duty Construction
High-tensile steel frames + premium bearings ensure 24/7 durability in harsh stone/sand screening.
✅ High Efficiency & Capacity
Optimized drum angle/speed + customizable screen meshes maximize throughput (up to 200 T/H).
✅ Superior Material Handling
Ideal for wet, sticky, or dry materials. Self-cleaning rotation prevents clogging.
✅ Low Noise & Vibration
Smoother operation than vibrating screens — reduces environmental impact.
✅ Minimal Maintenance
Simple modular design enables fast screen changes and low upkeep costs.
✅ Fully Customizable
Tailor drum size, screen layers (1-3), mesh type (steel/polyurethane), and power source (electric/diesel).
Applications
- 🏗️ Aggregate & Quarries: Crushed stone/sand classification
- ♻️ C&D Waste Recycling: Concrete/brick screening
- 🌱 Soil Remediation: Contaminant removal
- ⛏️ Mining & Minerals: Ore sizing, tailings processing
- 🏡 Topsoil Production: Uniform gardening/landscaping soil
- 🧱 Sand Plants: Washing and grading sand
Fixed Trommel Screens Technical Specifications (Customizable)
| Parameter | Specification Range |
|---|
| Drum Diameter | 600mm – 2500mm |
| Drum Length | 1.2m – 6m+ |
| Layers | 1, 2, or 3 |
| Mesh Size | 1mm – 100mm+ |
| Power | 3kW – 30kW (Electric/Diesel) |
| Capacity | 5 – 200+ T/H |
| Tilt Angle | 3° – 7° (Adjustable) |
Overcoming Screening Challenges
Problem: Wet Sand Sticking to Screens
Sinolion Solution: Slow-rotation design + polyurethane screens prevent buildup.
Problem: Rocky Soil Damaging Equipment
Sinolion Solution: Reinforced drum frames + abrasion-resistant screens withstand impact.
Problem: Variable Material Sizes
Sinolion Solution: Multi-layer drums classify 2-3 sizes in one pass.
Why Partner With Sinolion?
- 🔧 20+ Years of industrial screening expertise
- 🌍 CE-certified | Global shipping
- 💡 Turnkey Solutions: From consulting to after-sales support
- 📊 Free Site Analysis & Custom Quotes
Ready to Optimize Your Screening Process?
